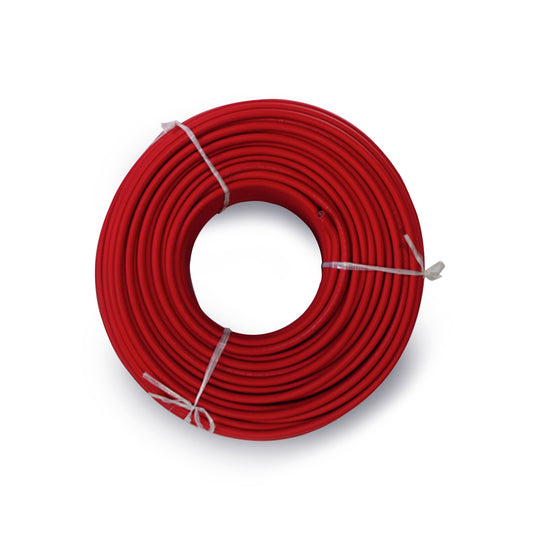

10mm2 Single Core Solar Cable (Red)

10mm2 Single Core Solar Cable (Red)

$7.90
$7.90
Tax included. Shipping calculated at checkout.

Our solar cables are designed specifically for the job, providing a durable and high-performance interconnection solution between photovoltaic panels and the inverter. They're perfect for caravans and homeowners looking to reduce their carbon footprint and meet clean energy objectives.

These cables are designed specifically for connecting photovoltaic panels to inverters, and are built to last.10mm2 Single Core Solar Cable (Red)

Nominal Area of Conductor 10sqmm
Maximum Conductor Resistance at 20°C 1.83Ohm/KM
Thickness of Insulation 1.0mm
Approx. Overall Diameter 6.0mm
Number of cores 1
Length 1 metre or 100 metres
Voltage 0.9-1.8 kV DC/0.6-1 kV AC
Core material Copper
Sheath Colour Red
Sheath Material UV Resistant PVC
Standards TÜV 2PfG 1169/08.07
Temperature -40-+90 deg C
Approx. Gross weight 0.115 kg per metre



16mm2 Single Core Solar Cable (Black)



👉 No Fire Propagation

👉 High-temperature rating & Low Smoke Fumes

👉 Halogen Free

👉 UV Resistant

👉 Durable for indoor and outdoor usage

👉 Excellent weathering and abrasion

👉 Resistant to water, chemical and oils

👉 Fully flexible class 5 for ease of installation and stripping
