Collection:
HE-250 Watts
HE-250 Watts
- Regular price
- $260.00
- Regular price
-
- Sale price
- $260.00
- Unit price
- per
Tax included.
Shipping calculated at checkout.

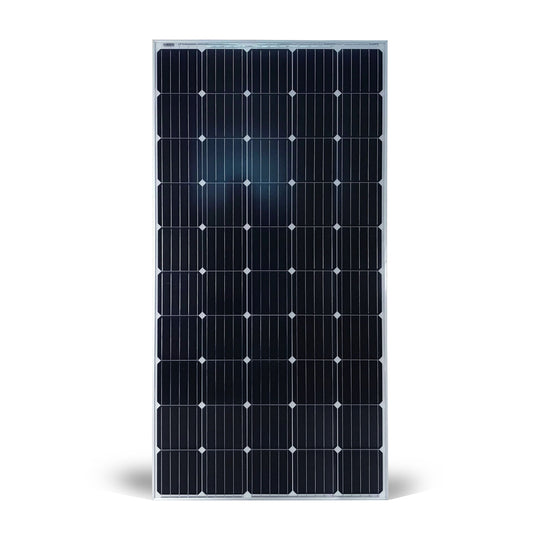

High-efficiency panels are ideal for homes seeking a visually pleasing solar panel and for roofs where space is tight.
- suitable for outdoor and household solar energy environmental power generation systems.
- This 250W Monocrystalline solar panel design had the highest efficiency which produces the most power compare.
- The product is suitable off-grid situations that include solar green light, solar light box billboard, solar insecticidal lamp, house solar power generation system, ship solar power generation system, field survival solar power generation system, etc.
Mechanical Properties
| Cell Configuration |
50 Cells (5 x 10) |
| Cell properties |
Monocrystalline |
| Number of Busbars | 5 BB |
| Dimensions (L x W x H) |
1640 x 808 x 35mm |
| Front Load (test) | 5400 Pa |
| Read Load (test) | 4000 Pa |
| Weight | 17.5kg |
| Connector Type | IP68 PV-KST4(male) PV-KBT4(female) |
| Junction box ingress protection |
IP65 |
| Length of Cable |
2x900mm |
| Glass (Materials) |
3.2mm Tempered Glass |
| Frame |
Anodised aluminium |
Electrical Properties
| Maximum Power Pmax (W) | 250 |
| MPP Voltage Vmpp (V) | 30 |
| MPP Current Impp (A) | 8.33 |
| Open Circuit Voltage Voc (V) | 36 |
| Short Circuit Current Isc (A) | 9.16 |
| Module Efficiency (%) |
18 ~ 20 |
| Operating Temperature (°C) | -40 to +85 |
| Maximum System Voltage (V) |
1000 (IEC) |
| Maximum Series Fuse Rating (A) |
20
|
| Power Tolerance (%) |
0 ~ +3
|
