HE-350 Watts

HE-350 Watts

Regular price
$310.00
Regular price
Sale price
$310.00
Unit price
per
Tax included. Shipping calculated at checkout.

High-efficiency panels are ideal for homes seeking a visually pleasing solar panel and for roofs where space is tight.
  • suitable for outdoor and household solar energy environmental power generation systems.
  • This 350W Monocrystalline solar panel design had the highest efficiency which produces the most power compare.
  • The product is suitable off-grid situations that include solar green light, solar light box billboard, solar insecticidal lamp, house solar power generation system, ship solar power generation system, field survival solar power generation system, etc.

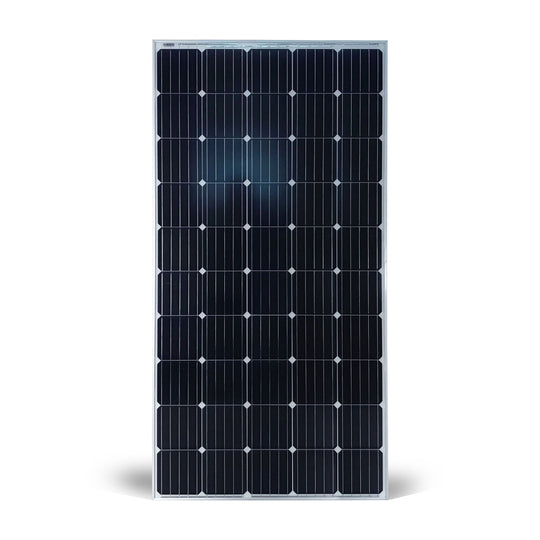

HE-350 Watts

Mechanical Properties

Cell Configuration
66 Cells (6 x 11)
Cell properties
Monocrystalline
Number of Busbars 5 BB
Dimensions (L x W x H)
1800 x 992 x 35mm
Front Load (test) 5400 Pa
Read Load (test) 4000 Pa
Weight 21.5kg
Connector Type
IP68 PV-KST4(male) PV-KBT4(female)
Junction box ingress protection
IP65
Length of Cable
2x900mm
Glass (Materials)
3.2mm Tempered Glass
Frame
Anodised aluminium



HE-350 watts specification

Electrical Properties

Maximum Power Pmax (W) 350
MPP Voltage Vmpp (V) 36
MPP Current Impp (A) 9.72
Open Circuit Voltage Voc (V) 43.2
Short Circuit Current Isc (A) 10.31
Module Efficiency (%)
18 ~ 20
Operating Temperature (°C) -40 to +85
Maximum System Voltage (V)
1000 (IEC)
Maximum Series Fuse Rating (A)
20
Power Tolerance (%)
0 ~ +3
