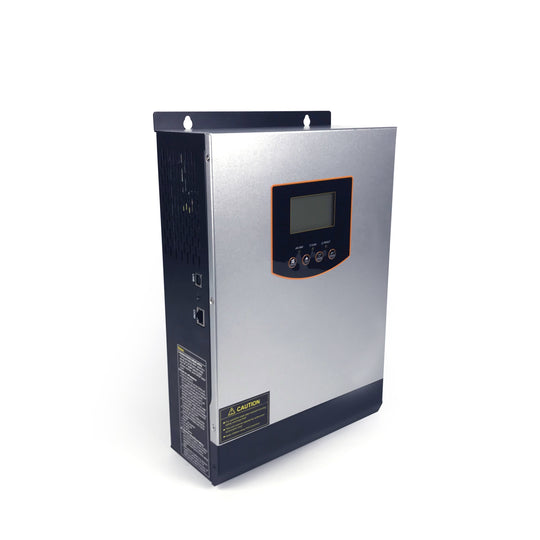

1K Watts 12V Off-grid Pure Sine Wave Inverter

1K Watts 12V Off-grid Pure Sine Wave Inverter

Regular price
$499.00
Regular price
Sale price
$499.00
Unit price
per
Tax included. Shipping calculated at checkout.

1000W 12V Pure Sine Wave Inverter is perfect for most off-grid systems, whether for a house, warehouse, shed or any remote location needing power.

Letovo's advanced pure sine wave technology will keep your electronics working smoothly. It has a low inductive load so there is a minimal strange buzzing sound. It also protects against power surges by blocking DC current with high-quality transformers, capacitors & resistors.

Letovo 1KW 12V Hybrid Inverter

INVERTER OUTPUT

Model  G011HFIM
Nominal Battery System Voltage 12VDC
Rate Power 1000W
Surge Power 2000W
Waveform Pure Sine Wave
AC Voltage Regulation (Batt.) (220VAC~240VAC)±5%
Inverter Efficiency (Peak) 93%
Transfer time 10ms (UPS / VDE4105) 20ms (APL)



AC POWER

Voltage 230VAC
Selectable Voltage Range  170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE4105)
Frequency Range 50Hz / 60Hz(Auto-sensing)



BATTERY

Normal Voltage  12VDC
Floating Charge Voltage 13.7VDC
Overcharge Protection 15.5VDC


SOLAR CHARGE & AC CHARGER

Charge Controller MPPT
Max. Solar Voltage 75VDC
PV Array Voltage Range 15~75VDC
Standby Power Consumption 2W
Max PV Array Power 625W
Max Solar Charge Current 60A
Max Efficiency 98%
Max AC Charge Current 20A
Max Charge Current 70A



MECHANICAL SPECIFICATION

Machine Dimension (W*H*D)  225*355*92mm
Package Dimension (W*H*D) 405*373*205mm
Net Weight 5.0kg
Gross Weight 6.0kg


OPERATION

Humidity  5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C
