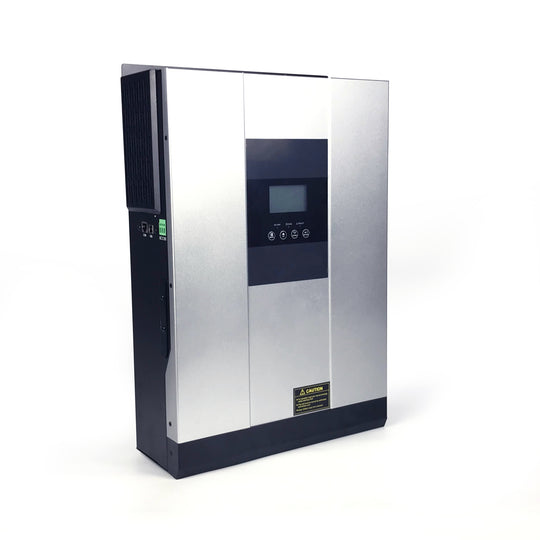

5K Watts 48V Off-grid Pure Sine Wave Inverter
5K Watts 48V Off-grid Pure Sine Wave Inverter
- Regular price
- $799.00
- Regular price
-
- Sale price
- $799.00
- Unit price
- per
Tax included.
Shipping calculated at checkout.
5000W 48V Pure Sine Wave Inverter is perfect for most off-grid systems, whether for a house, warehouse, shed or any remote location needing power.
Letovo's advanced pure sine wave technology will keep your electronics working smoothly. It has a low inductive load so there is a minimal strange buzzing sound. It also protects against power surges by blocking DC current with high-quality transformers, capacitors & resistors.
INVERTER OUTPUT
| Model | G013HFIX |
| Nominal Battery System Voltage | 48VDC |
| Rate Power | 5000W |
| Surge Power | 10000W |
| Waveform | Pure Sine Wave |
| AC Voltage Regulation (Batt.) | (220VAC~240VAC)±5% |
| Inverter Efficiency (Peak) | 93% |
| Transfer time | 10ms (UPS / VDE4105) 20ms (APL) |
AC POWER
| Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE4105) |
| Frequency Range | 50Hz / 60Hz(Auto-sensing) |
BATTERY
| Normal Voltage | 48VDC |
| Floating Charge Voltage | 54.8VDC |
| Overcharge Protection | 60VDC |
SOLAR CHARGE & AC CHARGER
| Charge Controller | MPPT |
| Max. Solar Voltage | 145VDC |
| PV Array Voltage Range | 60~130VDC |
| Standby Power Consumption | 2W |
| Max PV Array Power | 4000W |
| Max Solar Charge Current | 80A |
| Max Efficiency | 98% |
| Max AC Charge Current | 60A |
| Max Charge Current | 140A |
MECHANICAL SPECIFICATION
| Machine Dimension (W*H*D) | 468*297.5*125mm |
| Package Dimension (W*H*D) | 638*395*241mm |
| Net Weight | 13.3kg |
| Gross Weight | 16kg |
OPERATION
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
